| Brand Name : | Jinwei |
| Model Number : | U-panel |
| Certification : | ISO9001:2008 |
| Price : | To be negotiated |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 30,000pcs per month |
| Delivery Time : | 7-14 working days |

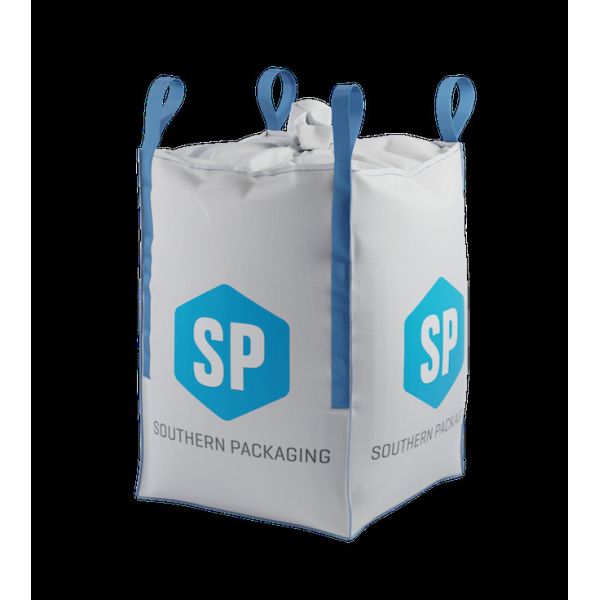

U-Panel
U-Panel bags are constructed with three main body components – one
that runs the full length of the bag forming the bottom and two
sides (the “U”) and two additional pieces of fabric sewn between
the U on two sides (the “Panel”). Generally, U-panel bags will
maintain a square shape when filled, especially with the addition
of internal baffles. U-panel bags are an industry standard and the
most popular type of construction.
Benefits:
Super weight-bearing power
The stress area at the bottom of the bag is small
Square look due to vertical side seems
Quality products for screening
| Top Option | Open,duffle,star Top |
| Loop Option | Corner,cross-corner,side Loop |
| SF | 5:1,6:1 |
| Bottom Option | Flat,spout,star Bottom |
| Color | White Or Customerized |
| SWL | 500-2,000KG |
|
